Aircraft Oil Analysis: What It Tells You About Your Engine

By Eric Hardcastle, Instrument-rated private pilot and software builder | Published 2026-04-30

If your fleet runs piston aircraft, the engine is by far the most expensive system you own, and the most expensive one to fail. A cylinder swap is painful. A premature overhaul is catastrophic. The difference between catching a problem early and discovering it during a run-up is very often sitting in the oil.

Oil analysis is the closest thing a flight school has to an MRI for a piston engine. Done consistently, it tells you what is wearing, how fast, and whether you should be flying, watching, or investigating. Done inconsistently, it just becomes another stack of PDFs in a drawer.

What oil analysis actually tells you

When a lab such as Blackstone Laboratories runs a sample, it is not just measuring how dirty the oil is. Spectrometric analysis measures the wear metals and contaminants suspended in the oil in parts per million (PPM), and each one points to a different part of the engine. The FAA's Aviation Maintenance Technician Handbook–Powerplant (FAA-H-8083-32B) lists the usual sources in chapter 6:

  • Iron: rings, shafts, gears, the valve train (camshaft and lifters included) and cylinder walls. A steady climb on one engine is worth a borescope.

  • Aluminum: pistons, rod bearings and certain bushings. On a Lycoming, the piston pin plugs are aluminum or aluminum bronze too, so a spike can point to piston or pin plug wear.

  • Chromium: chromed parts such as rings and chrome cylinder barrels. Its trend can help separate ring wear from cylinder wear, and the lab needs to know if your cylinders were chromed at overhaul, or the baseline will look wrong.

  • Copper: bearings, rocker arm and wrist pin bushings, thrust washers and other bronze or brass parts.

  • Lead: mostly the tetraethyl lead in 100LL doing its job. On its own it says little about wear; a sudden change is what is worth a question.

  • Nickel: a secondary indicator from certain bearings, shafts, valves and valve guides.

  • Silicon: dirt, which is usually a story about induction air filtration.

  • Fuel and water dilution: clues to ring sealing, run length and how the airplane is being operated.

None of these numbers mean much in isolation. They mean something relative to that engine's own history and to the similar engines the lab has on file. That is why a single report is interesting, but a trend line is actionable.

Why a single report is not enough

A common mistake is to look at one report, see every element sitting near the lab's universal averages for that engine model, and file it away. The real value shows up after three, five, ten samples. That is when you can see:

  • Iron creeping up sample over sample on a specific engine while the rest of the fleet stays flat.

  • Silicon spiking the month after an air filter was disturbed during an annual.

  • Fuel dilution rising on the trainer that lives in the pattern at low power settings.

  • An engine that has quietly been the cleanest in the fleet for 600 hours, and is therefore probably the one to keep flying hard.

Lycoming made the same point decades ago in Service Letter L171, General Aspects of Spectrometric Oil Analysis. Metal content runs high in a new or freshly overhauled engine while the parts break in, drops off after about 25 hours, and then holds roughly level unless something starts wearing abnormally. Abnormal wear shows up as a "break" in that curve. Lycoming gives two examples from real reports: silicon rising from about 5 to about 30 PPM, with chrome and iron climbing behind it until a filter change and a better fit fixed the dirt leak, and copper jumping from 10 to 50 PPM at 900 hours, which pointed to bearing wear that inspection confirmed before it became a major failure.

Lycoming is just as clear that a break in the curve "does not necessarily mean that failure is imminent." It means you investigate: check the filters, borescope the cylinders, run a compression check. Lycoming also says it takes no responsibility for engines kept in service or removed from service solely on the basis of an oil analysis report. The report starts the conversation with your mechanic. It does not end it.

Trend, not absolute, is the language oil analysis speaks. Most flight schools never get there because the data lives in PDFs scattered across email threads, instructor inboxes, and a maintenance officer's laptop. Keep the history with the engine, by serial number, because engines move between airframes at overhaul and the trend has to follow them.

What oil analysis does not replace

Both big piston engine makers say oil analysis is an extra tool, not a substitute for looking.

  • Continental, in Service Information Letter SIL99-2C, says oil screens and filter elements must be inspected for contaminants at each oil change, and that oil analysis "may be used in addition to the oil screen or filter element inspection, but not as a replacement for it."

  • Lycoming, in SL L171, says oil analysis does not replace differential compression checks, borescope inspection or filter content inspection.

  • The regulations already require part of this. At every annual and 100-hour inspection, 14 CFR Part 43, Appendix D calls for the internal engine to be checked for cylinder compression and for metal particles or foreign matter on screens and sump drain plugs.

The reason is particle size. A spectrometer measures the microscopic particles that stay suspended in the oil. Larger flakes from a failing part get caught in the filter or screen instead, which is why cutting the filter open matters. You want both.

How often to sample, and how to take a good sample

The easy rule is to sample at every oil change, and the oil change interval comes from the engine manufacturer. Lycoming's oil and filter change recommendations (Service Bulletin 480) are:

  • every 50 hours, with a filter change, on engines with a full-flow oil filter;

  • every 25 hours, with the screen cleaned, on engines with only a pressure screen;

  • and no more than four months between changes for either, "even if the aircraft is flown only a few hours."

Continental's SIL99-2C gives the same 50 hours or 4 months with a full-flow filter and 25 hours or 4 months with a screen, calls its intervals minimums, and says it believes more frequent oil and filter changes enhance engine service life. Your engine's maintenance manual, and the aircraft's POH or STC, still govern for your installation.

Lycoming's L171 also describes a good sample, and your lab's kit will say much the same:

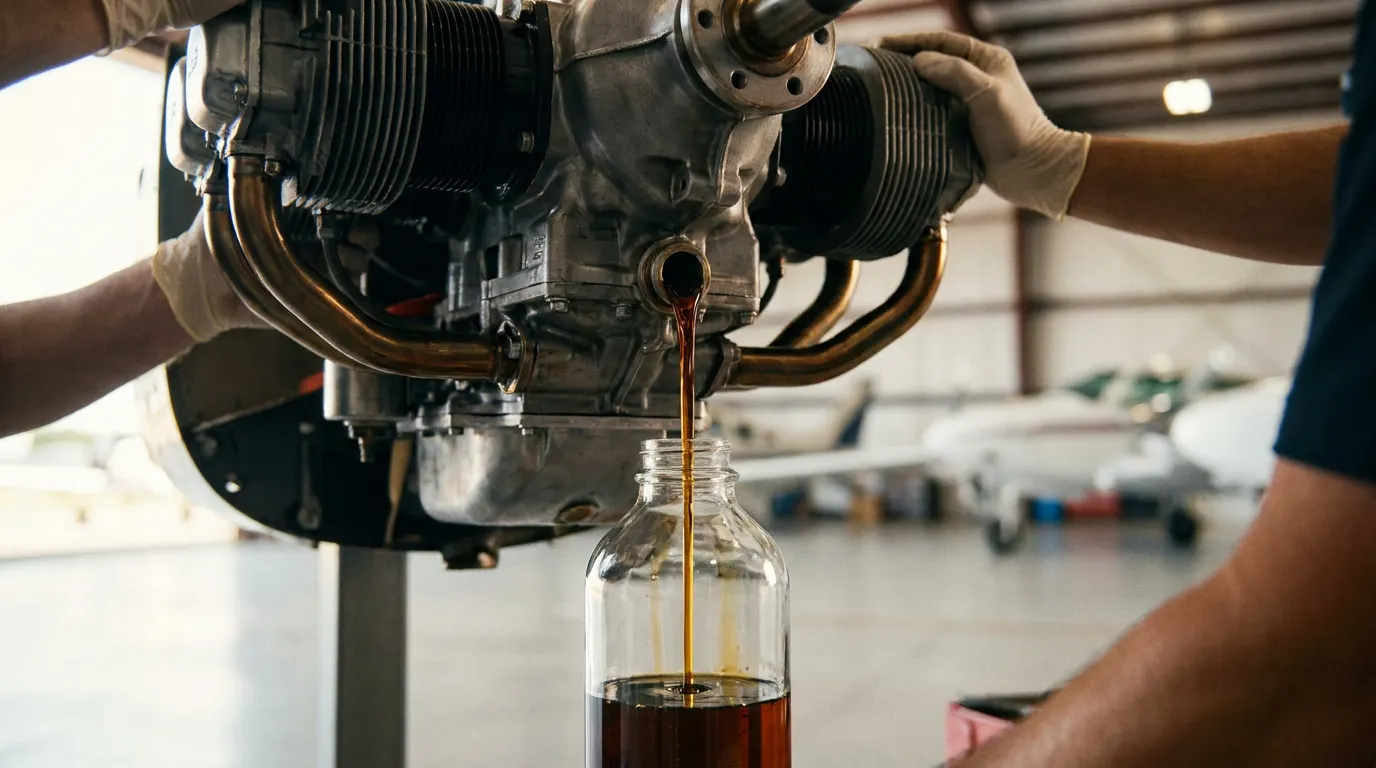

  1. Fly or run the engine until the oil temperature is stable, then shut down and check the oil quantity.

  2. Take the sample at the oil change if you can. If not, any time after the oil has 10 hours on it.

  3. Keep it clean. If you sample while draining, let about half the oil run out and catch the sample from the stream.

  4. Send the history with it: engine model and serial number, total time and time since overhaul, the oil brand and type, hours on this oil, oil consumption, and any major repair or top overhaul.

That last step is where most schools fall down. A lab can only compare your engine with itself if every sample arrives with the same, correct information.

Oil consumption is the other half of the story

Lab numbers tell you what is in the oil. Consumption tells you how the engine is using it. The two together are far more diagnostic than either alone.

An engine that suddenly starts burning a quart every two hours instead of every six is telling you something, and it is telling you long before the next oil change. Combined with rising iron or chromium in the next sample, you have a clear picture: rings, cylinders, or both.

That engine may still be inside the published limit. Lycoming's Service Instruction 1427C gives the maximum allowable oil consumption for its engines as 0.006 × BHP × 4 ÷ 7.4 quarts per hour. For an engine making 160 horsepower, that is about 0.52 quarts an hour, or roughly a quart every two hours. Inside the limit is not the same as healthy. The tripled rate is the finding.

So log the quarts added on every flight, with the tach time, not just at oil changes. A consumption rate worked out from a few entries a year cannot show a step change; one worked out from every flight can.

Why this matters more for flight schools than anyone else

Flight school engines lead a hard life. Touch-and-goes, full-power climbs, instructor-induced thermal cycles, mixed pilot technique, low-utilization stretches around exam season: all of it accelerates wear in different ways. The engines that fly the most are not always the ones at greatest risk; the engines that fly inconsistently often are. Lycoming's Service Letter L180B warns that engines flown only occasionally "may not achieve normal service life because of corrosion," as moisture and combustion byproducts attack cylinder walls and bearing surfaces while the airplane sits.

And the cost of being wrong is asymmetric. An unexpected cylinder change pulls an aircraft off the line for a week, blows up the schedule, refunds students, and burns instructor goodwill. A precautionary borescope based on a rising iron trend costs an hour of shop time. The math is not subtle, and it is the same math behind predictive fleet maintenance and every effort to reduce maintenance-related downtime.

Where Flight Suite HQ fits

Most operators we talk to are sending oil samples. They are just not getting full value from them, because the results never meet the rest of the maintenance record. In Flight Suite HQ's maintenance module, each oil analysis is recorded with the oil brand and the lab's results and trended on the aircraft's engine-health record, alongside borescope images, cylinder compressions and imported Garmin engine data. An oil analysis note, such as one about rising chrome and nickel, flags that aircraft on the Fleet Health view, next to its inspections, open squawks and time to overhaul. Maintenance tracking is in every plan, not an add-on.

The finding also reaches the people booking the airplane. With booking checks on the schedule, a new reservation on that aircraft shows a warning that a recent oil analysis shows rising chrome and nickel and recommends a borescope inspection, before the booking is saved. The decision stays with your mechanic; the schedule just stops pretending the report does not exist.

What good looks like

A flight school running this well typically settles into a rhythm:

  1. Sample at every oil change, on every engine, without exception.

  2. Track quarts added on every flight, not just every 50 hours.

  3. Review trends monthly, not annually, and act on the trend before it becomes a number.

  4. Tie sample intervals to engine hours as well as the calendar, and shorten them when a trend starts to move.

  5. Treat the oil report as a maintenance input that sits alongside the filter inspection, the borescope and the compression check, and feed what it finds into your squawk process like any other discrepancy.

For how oil analysis fits a whole maintenance program, see maintenance management for flight schools.

The bottom line

Oil analysis is not exotic. It is one of the cheapest and most useful data sources a flight school has. The reason it does not deliver in most operations is a workflow problem: samples get pulled, results come back, and nobody connects them to the engine, the consumption rate, the filter findings, or the trend.

Connect those, and engines tend to last longer, surprises drop, and the schedule stops getting ambushed by problems that were sitting in a PDF the whole time.

Frequently asked questions

How often should you do an oil analysis on an aircraft engine?

At every oil change. For most piston engines that is every 50 hours with a full-flow filter, 25 hours with only a screen, and no more than four months apart. Lycoming says a sample can be taken any time after the oil has 10 hours on it.

How often should aircraft engine oil be changed?

Lycoming SB 480 and Continental SIL99-2C both call for 50 hours or 4 months with a full-flow filter, and 25 hours or 4 months with a pressure screen, whichever comes first. Your engine's manual governs.

Can oil analysis replace cutting open the oil filter?

No. Continental says oil analysis may be used in addition to the screen or filter inspection, not as a replacement, and Lycoming says it does not replace compression checks, borescope inspection or filter inspection.

What does high iron or copper in an aircraft oil analysis mean?

Iron usually comes from cylinder walls, rings and the valve train; copper from bearings and bushings. A rising trend means investigate with your mechanic, not that failure is imminent.

How much oil consumption is too much for a Lycoming engine?

Lycoming SI 1427C sets the maximum at 0.006 × BHP × 4 ÷ 7.4 quarts per hour, about 0.52 for 160 horsepower. A sudden rise in an engine's own rate matters even inside that limit.
